Introduce

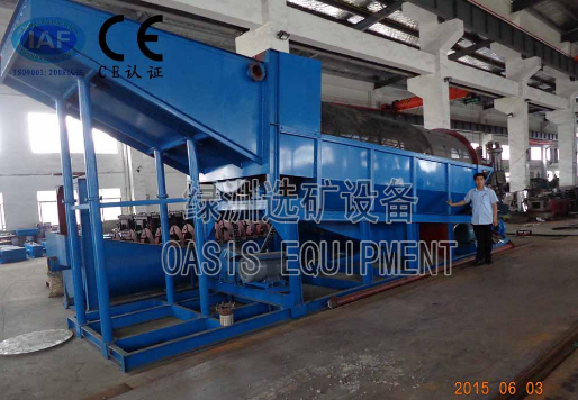

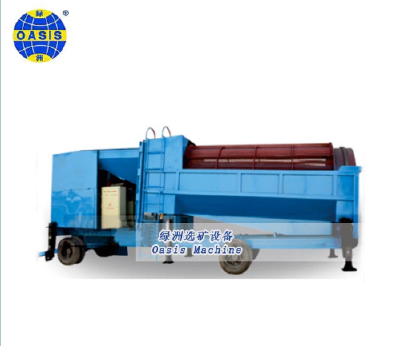

The roller screen is composed of five parts, a roller, a machine frame, a hopper, a speed reducer and an electric motor. The mineral into the drum, a screening with the drum rotation, a large particle size of the stone along the slope of the drum forward flow through the sieve of different mesh is gradually screened. The small stone to sieve out into the funnel, and then by artificial shipped or their sent to the finished pile.

Drum sieve, fine workmanship, durable, steel welding to steel funnel, large volume, and a steel plate is connected with the. A plurality of funnel are respectively arranged out of the material. ZuiZi funnel to flange connection, but to the side or side material, convenient management experience and improve the yield, prevent plugging material wear screen, delay the production.

Suitable for screening the various properties of the material such as sand gold, coal and coke, lime and other wet sieve clogging materials, maximum <100mm products, 10 ~ 50mm, the fine of up to more than 3mm below.

Performance characteristics:

1, the mesh is not easy to be blocked.

2, stable operation, low noise.

3, simple structure, convenient maintenance.

4, the whole machine high reliability, less one-time investment.

5, using a special screen, high efficiency, long service life.
